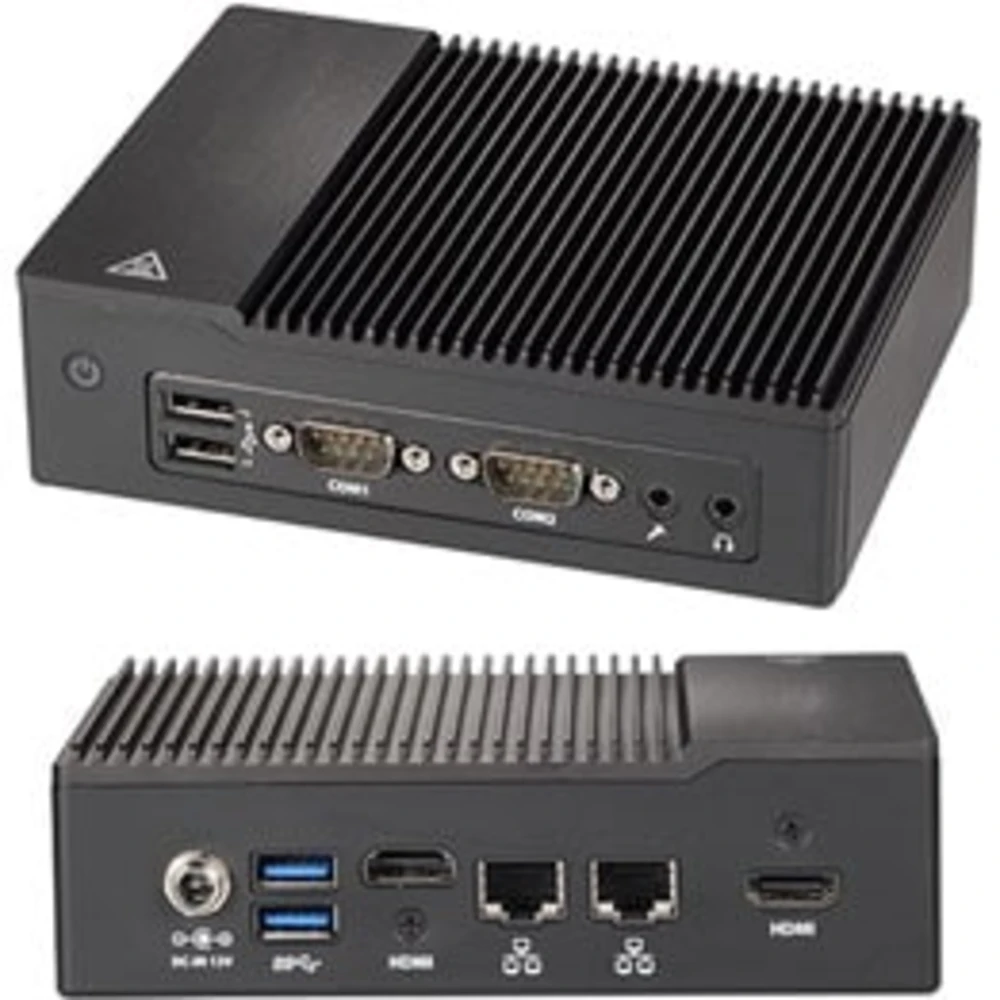

Supermicro SYS-E50-9AP-WIFI
SYS
Key Features
- Built-in Wifi Module and Antenna
- IP51 with plastic chassis
design for water/dust proof
- Cable-less design for easy
maintenance
- Fanless design with palm-size
dimension
1. Intel® Atom® processor E3940 (9.5W, 4C)
Single socket FCBGA 1296
2. System on Chip
3. 1 SATA 3.0 for 7mm 2.5" SATA SSD,
1 M.2 B-Key 2242/3042 for SATA SSD
4. Up to 8GB unbuffered non-ECC SO-
DIMM, DDR3L-1866MHz, in 1 socket
5. 1 Full size Mini-PCIe,
1 Half size Mini-PCIe,
1 M.2 B-Key 2242/3042
6. Dual LAN with Intel I210-IT;
Dual Band Wireless and Bluetooth 4.2
7. 2 USB 3.0, 2 USB 2.0, 2 COM
(RS-232/422/485), 1 TPM 2.0 onboard
8. Fanless design
9. Lockable 12V DC 40W power adapter
